Air Vents

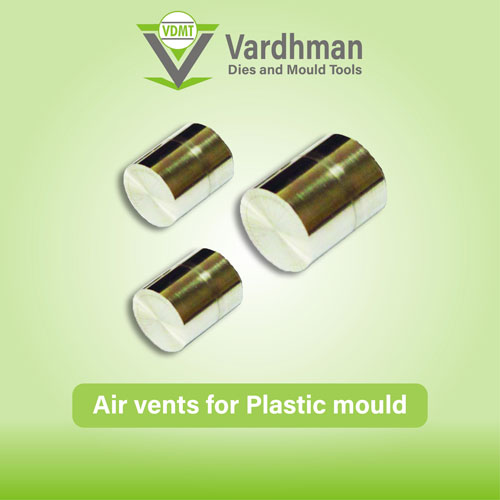

An air vent is a controlled path that allows displaced air and process gases to leave the mould cavity as molten material fills it. On this page, the product is presented as a round sintered-steel venting component for mould applications. We select the vent according to the filling pattern, trapped-air location, moulded material, temperature, available space and required gas flow.

As molten material advances, it compresses the air already present in the cavity. If that air cannot escape, it can resist filling, overheat locally or leave gas-related defects. Effective venting supports complete filling, more stable pressure and better surface quality. Venting must be designed with the gate, flow path, part geometry and process settings rather than treated as an isolated insert.

A sintered vent uses a porous metal structure that allows gas to pass through many connected microscopic paths. An open machined vent relies on a deliberately cut channel, commonly at a parting line or insert boundary. Sintered vents can help in enclosed or difficult-to-reach locations, while machined vents are easier to inspect visually. The mould may use one or both methods.

An air vent allows trapped air or gas to escape during cavity filling. An air ejector pin introduces controlled air after moulding to help release the component from a core or surface. One supports filling; the other supports part release. They solve different problems and may both appear in the same mould when venting and vacuum release are required.

A venting plug is useful where air becomes trapped in a blind pocket, deep rib, boss, enclosed feature or end-of-fill area that cannot be vented effectively through the parting line. It can also support thin-wall filling where gas must escape quickly. We confirm the exact trap location and filling sequence before recommending the vent position and size.

Thin-wall parts fill quickly and can lose flowability rapidly, leaving little time for air to escape. Trapped gas can increase resistance and prevent the material from reaching narrow or distant areas. Correct venting can support a more stable fill, but it must be combined with suitable gate design, temperature, injection speed, pressure and mould accuracy.

Typical signs include burn marks near the end of fill, short shots, incomplete thin sections, weak or visible weld lines, high filling pressure, inconsistent filling between cavities, gas marks and defects that improve when speed or pressure is reduced. These symptoms can have other causes, so we review the flow pattern, gate, temperature, material and vent condition before changing the mould.

A vent should be positioned where air is predicted or observed to become trapped, often near the final area filled, behind a rib, around a deep feature or in a blind pocket. We use the part drawing, gate location, flow direction, moulding trial and defect position to identify the location. Placing a vent only where installation is convenient may not solve the gas trap.

Sintered steel can contain an interconnected porous structure that allows gas to pass through the component while the solid metal supports the mould surface. The official page lists sintered steel for its air vents. Performance depends on pore structure, density, strength, corrosion exposure, temperature and cleaning method, so the exact material and grade must be confirmed for the application.

Price, MOQ and lead time depend on diameter, length, sintered material, pore structure, hardness, finish, custom seating, quantity, inspection and stock availability. The current page displays an MOQ of 20 pieces for its listed specification. We confirm the applicable MOQ, ready-stock status, production time, taxes, packing and freight for the exact requirement.
