Mould Cooling Products

Buy best price, durable and superior performance Mould Cooling Products (Mould Cooling Plugs, Mould Cooling Baffles, Cooling Couplings & Nipples, Mould Heat Pipes, Mould Heat Insulation Sheets) from Vardhman Dies & Mould Tools – one of the largest manufacturers, exporters and suppliers of Mould Cooling Products in Mumbai, India. Vardhman Dies & Mould Tools is India’s leading Industrial Mould Cooling Products exporter in Mumbai known for producing quality-tested products.

At Vardhman Dies & Mould Tools, we supply Mould Cooling Products, Press tools Accessories, Die Springs, Mould Ejection System, Mould Alignment Products, Mould Latches, Mould Parting lock, Mould Date Indicators, Mould Cooling Products, Sprue Bush, Mould Base, Mould Counter, Mould Spray, Piercing Punches, Polyurethane Elastomers, Ball cage, and Dies and Mould Polishing and Finishing Tools that fit your production requirement and minimise overall cost.

Whatsapp
Send Enquiry

Mould Cooling Products

Vardhman Dies & Mould Tools manufacturing and exporting high quality Mould Cooling Products worldwide.

Vardhman Dies & Mould Tools’ Mould Cooling Products have numerous applications in the Engineering industry all around the world and are used in the moulding and die-casting industry to meet different industrial applications.



Mould Cooling Products FAQ’s

The official category includes Mould Heat Insulation Sheets, Mould Heat Pipes, Cooling Couplings & Nipples, Mould Cooling Baffles and Mould Cooling Plugs. These products solve different thermal-control tasks: insulation limits heat exchange, heat pipes transfer heat, couplings connect coolant circuits, baffles redirect flow and plugs close water passages.
A baffle redirects coolant through a drilled passage so it reaches an area that ordinary channels may not cool effectively. A cooling plug closes or seals a water slot or passage. The baffle controls the flow path; the plug terminates or isolates it. They should not be substituted because their geometry, sealing and installation duties are different.
A heat pipe can be considered when a narrow core, deep feature or local hot spot cannot accommodate an effective water passage. The official page describes a vacuum-tight tube with a wick and working fluid that transfers heat from an evaporator end to a condenser end. Selection still requires heat load, space, orientation, temperature and heat-sink conditions.
They connect mould passages to hoses or external temperature-control equipment and allow coolant to enter and return from the circuit. The official page calls them temperature-control or quick couplings and states brass as the raw material. Correct selection depends on thread, hose size, flow, pressure, temperature, seal, connection method and coolant.
The official page says the sheets reduce heat exchange between the mould or die and the machine platen. This can support faster thermal stabilisation, lower energy loss and reduced heat exposure to the machine. The sheet must also withstand clamping compression and maintain the required locating-ring, screw and mounting clearances.
A heat pipe transfers heat, but it does not destroy it. The heat extracted from the hot end must be removed at the condenser end by an active cooling channel, cooling water block or large cold mass. If the pipe is simply pushed into an un-cooled insert, the insert will still overheat once thermal saturation is reached.

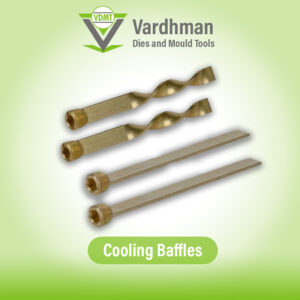

A straight baffle uses a flat blade to divide a drilled hole into two parallel passages. A spiral baffle uses a helical or twisted form to guide coolant. The spiral design can promote movement along the channel wall and may reduce stagnant zones, but actual performance depends on circuit geometry, flow and clearance.
While a standard pipe plug seals a threaded port, a mould cooling plug may be designed specifically to close or isolate internal water slots or drilled intersections without requiring threads. The official page states brass and nylon materials are available, implying different sealing or expansion mechanisms compared to standard threaded pipe fittings.
Only if that circuit section must be blanked off entirely. Replacing a coupling with a solid plug stops all coolant flow through that line. If the circuit must remain active, the coupling must be replaced with another compatible coupling or nipple that allows flow while sealing the external connection.
View All Industrial Piercing Punches FAQs
Request Technical Quote

Vardhman Dies & Mould Tools is one of the leading manufacturers, suppliers, and exporters of Mould Cooling Products in India. These products are manufactured from high-quality materials that are long lasting and hard wearing, and produce excellent results. Materials are sourced from trusted and reliable vendors and are manufactured at our manufacturing unit using latest machineries in compliance with industry quality standards to meet the requirements of the Dies & Mould Tools Industries.

Mould Cooling Products Products offered by Vardhman Dies & Mould Tools

Mould Heat Insulation Sheets
Mould Heat Insulation Sheets
Mould Heat Pipes
Mould Heat Pipes
Cooling Couplings & Nipples
Cooling Couplings & Nipples
Mould Cooling Baffles
Mould Cooling Baffles
Mould Cooling Plugs
Mould Cooling Plugs
