Slide Retainer

Buy best price, durable and superior performance Slide Retainers (Slide Retainer Type A, Slide Retainer Type B, Slide Retainer Type C, Slide Retainer Type D, Slide Retainer Type E, Slide Retainer Type F, Slide Retainer Type G, Slide Retainer Type H, Slide Retainer Type I, Slide Retainer Type J, Slide Retainer Type K, Slide Retainer Type L, Slide Retainer Type M, Modular Retainer, Spring Plunger, Slide Core Unit) from Vardhman Dies & Mould Tools – one of the largest manufacturers, exporters and suppliers of Slide Retainers in Mumbai, India. Vardhman Dies & Mould Tools is India’s leading Industrial Slide Retainers exporter in Mumbai known for producing quality-tested products.

At Vardhman Dies & Mould Tools, we supply Slide Retainers, Press tools Accessories, Die Springs, Mould Ejection System, Mould Alignment Products, Mould Latches, Mould Parting lock, Mould Date Indicators, Mould Cooling Products, Sprue Bush, Mould Base, Mould Counter, Mould Spray, Piercing Punches, Polyurethane Elastomers, Ball cage, and Dies and Mould Polishing and Finishing Tools that fit your production requirement and minimise overall cost.

Whatsapp
Send Enquiry

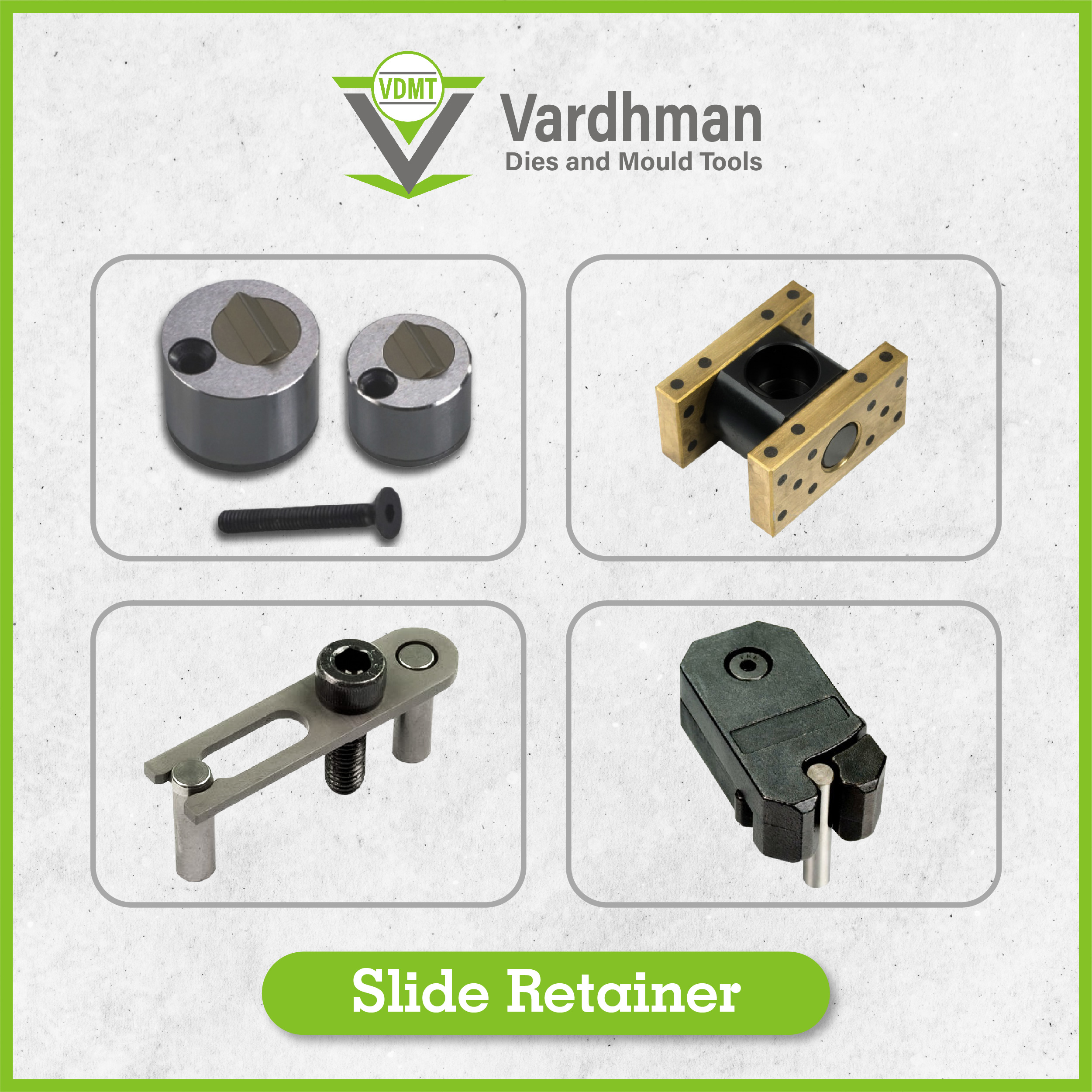

Slide Retainers

Vardhman Dies & Mould Tools manufacturing and exporting high quality Slide Retainers worldwide.

They help ease, precise and proper movement within the mold. We offer Slide Retainers which are hardened, and specifically shaped, it is utilized to keep machine components in precise alignment; they are also used as position guides for adjoining machine parts and to keep the two component of a punch and die in order.

The Features /Advantages Vardhman Dies & Mould Tools’ Slide Retainers:

  • Slide Retainers are functionally engineered for the long life and consistent slide holding strength.
  • Reliable slide holding capacity in compact and effective design.
  • Engineered springs for consistent holding power, with cleats for non-hardened slides.
  • Improved design enables easier machining and tapping than previous methods.
  • Compact design allows for installation in a mold base or directly into a wear plate.
  • Eliminate damaged molds and downtime due to side action retention failure.

Vardhman Dies & Mould Tools

Vardhman Dies & Mould Tools’ Slide Retainers have numerous applications in the Engineering industry all around the world and are used in the moulding and die-casting industry to meet different industrial applications.

Vardhman Dies & Mould Tools is one of the leading manufacturers, suppliers, and exporters of Slide Retainers in India. These products are manufactured from high-quality materials that are long lasting and hard wearing, and produce excellent results. Materials are sourced from trusted and reliable vendors and are manufactured at our manufacturing unit using latest machineries in compliance with industry quality standards to meet the requirements of the Dies & Mould Tools Industries.



Slide Retainer FAQ’s

A slide retainer holds a side-action slide or moving core in its intended open or parked position so it does not drift, fall or move unexpectedly during mould opening, handling or ejection. It should provide repeatable holding force without replacing the slide guides, positive stops or locking surfaces. We select the retainer from slide mass, orientation, stroke, speed, temperature and mounting space.
When the mould opens, gravity, vibration, handling or acceleration can move an unlocked slide away from its safe position. A retainer keeps it stable until the intended actuation sequence begins. This helps protect the moulded part, core, cam, wear plates and operator. The retainer must release predictably when the slide is driven toward the moulding position.
A mould latch generally controls the relative movement or staging between mould plates during the opening sequence. A slide retainer holds an individual sliding or moving core component relative to its mounting plate. While both involve holding and release, their geometries, load directions, mounting positions and intended components are different.
A ball catch is a common mechanism that uses a spring-loaded ball engaging a detent, which provides moderate retention. Slide retainers cover a broader category that includes ball catches, roller retainers, friction plates, spring-loaded wedges, toggle clips and heavy-duty locking units. The required holding force and mounting space determine which mechanism should be used.
A roller-type retainer may be selected when smoother engagement, higher load capacity or less wear is required compared to a simple ball catch. The roller can distribute load over a line rather than a point, which can be useful for frequent cycling or larger slides. We require the load and mounting drawing before confirming the mechanism type.
No. A slide retainer maintains the parked position against incidental force but is not designed to absorb high-speed end-of-stroke impact. The slide must still use a robust, defined positive mechanical stop. The retainer should engage exactly when the slide contacts the stop, without acting as the stop itself.
No. A retainer that holds a small, horizontal insert will not safely retain a massive, vertically oriented slide against gravity and machine vibration. Retainers must be selected by comparing their rated holding force against the actual load. The mounting method must also fit the available space without weakening the mould.
Yes, it is strongly recommended. Although gravity does not pull a horizontal slide open or closed, machine vibration, ejection shock, robot handling and acceleration during mould movement can still cause the slide to drift from its parked position. A retainer prevents this unintended drift.
Many retainers include a set screw or spring adjustment to vary holding force within a rated range. The adjustment should be set carefully, recorded and secured with a locking nut or thread compound where specified, so it does not loosen during production. Do not tighten a retainer beyond its specified capacity to compensate for a mechanism that is too small.
Provide the slide mass, movement direction relative to gravity, required holding force, operating temperature, available mounting space, intended release method and cycle frequency. The mould layout drawing should be included so the pocket position, stop location and retainer clearance can be evaluated together.
